Description
|
Engine options:
|
ALL engines are COMMERCIAL DUTY WITH 3 YEAR ENGINE WARRANTY Vanguard 10HP | Kohler Command Pro CH395 9.5HP | Honda GX270 9HP OPTIONAL ENGINES: Vanguard 14HP, Honda GX390 13HP, Kohler CH440 14HP |
|
Starting System:
|
Recoil (manual), or Electric start with recoil backup |
|
Clutch:
|
Inverted conical type; serviceable/replaceable clutch lining
|
|

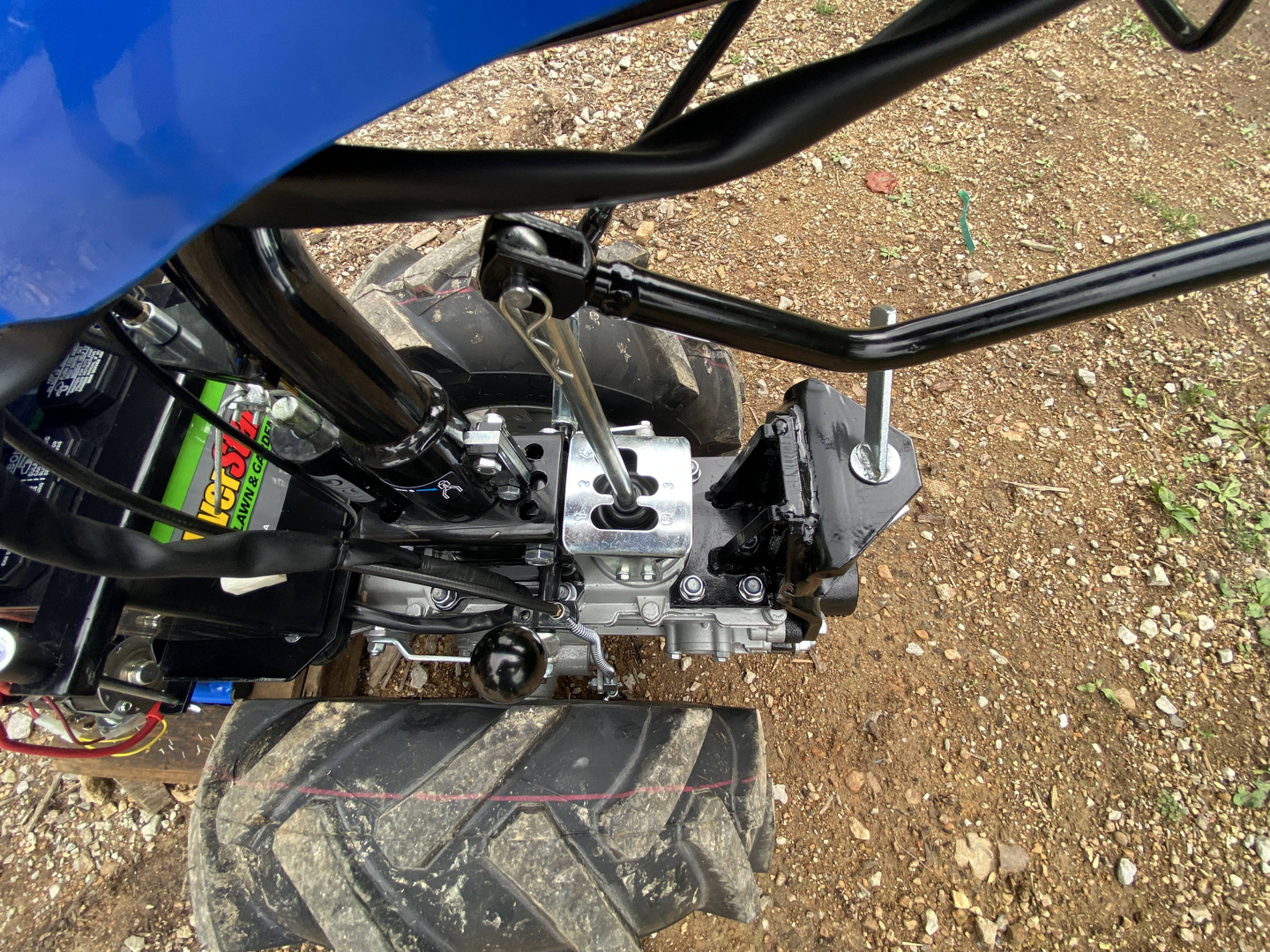

Transmission:
|
All hardened steel gears and shafts supported by ball bearings, in oil bath
|
|
Differential:
|
Standard, lockable, control on handlebar
|
|
Steering Brakes:
|
No
|
|

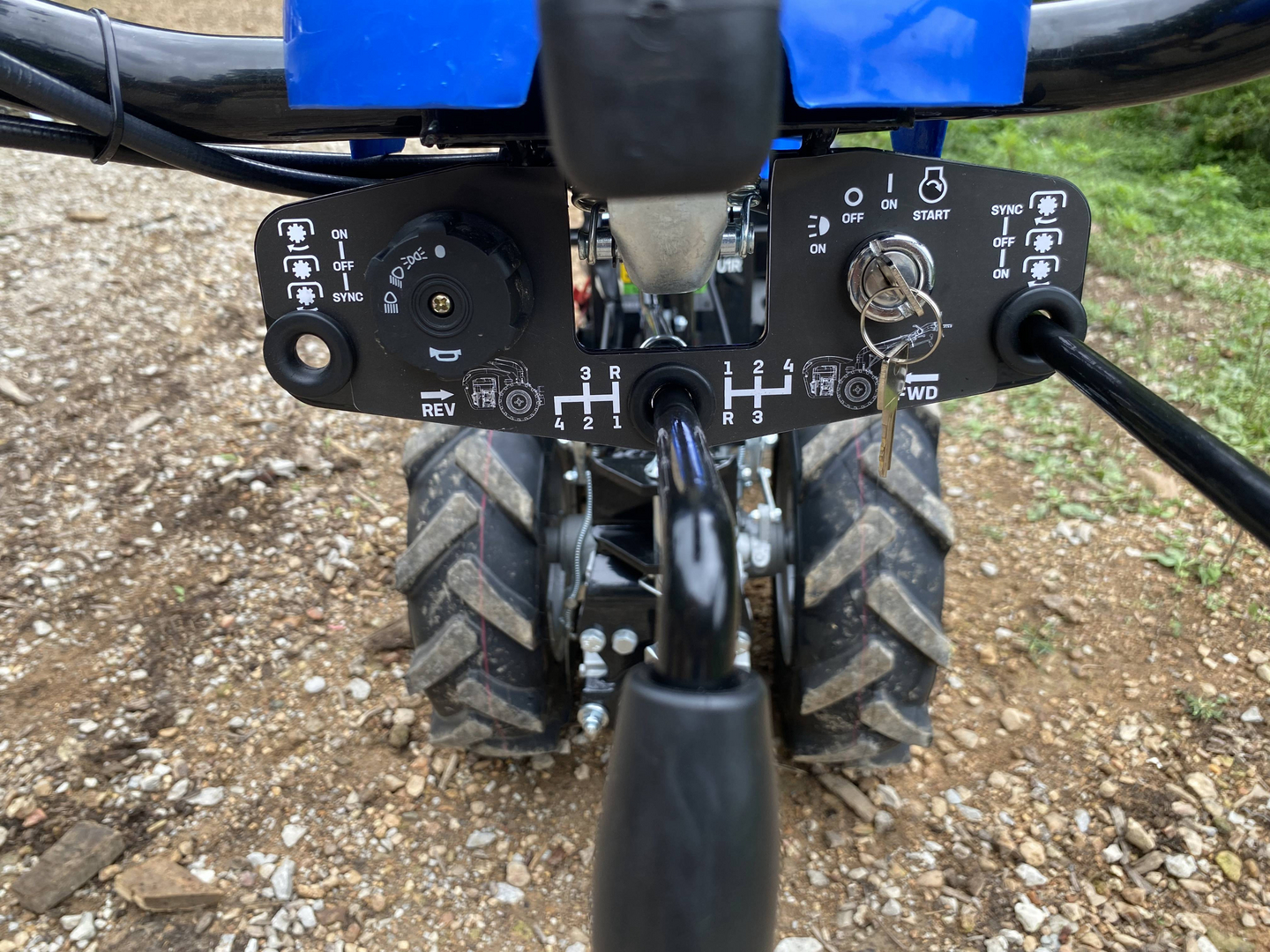

Wheel Speeds:
|
3 working speeds Fwd, 1 Rev speed (in both directions) + 4th gear (Transport gear) in both directions
|
|
Rear PTO (tilling) mode:
|
|
|
Front PTO (mowing) mode:
|
|
|
Safety Features:
|
Operator Presence Control (deadman switch), reverse gear/PTO lockout (prevents PTO engagement in reverse)
|
|
Handlebars:
|
Anti vibrated – easily adjustable up and down with 5 different height positions, 3 lateral adjustments in both front and rear mode. Fully reversible to convert from front PTO to rear PTO mode.
|
|
PTO Type:
|
2 Modes:
1) Independent, 985 rpm at maximum engine speed for front mount | 675 RPM for rear mount
2) PTO synchronized to wheels speeds for use of PTO driven 4 x 4 trailer
|
|
Method of changing implements:
|
Integrated quick coupling system is standard
|
|
Standard Wheel Size:
|
5”x10”x20” tractor tread, adjustable track width, tube type. Foam-filled option available | Other tire types and sizes available as well
|
|
Standard outside wheel track (w/o accessories):
|
19″ narrowest width with 4″ x 10″ x 18″
21″ narrowest width with 5″ x 10″ x 20″
|
|
Tractor Weight (w/o implements):
|
Gas: 280 lbs.
Gas with electric start: 308 lbs. |
